[AudioI] zero audio output connections
Matt
matt at audioinjector.net
Wed Aug 19 03:10:50 UTC 2020
Hi,
The regular output drives RCAs or another preamplifier. The phones
output is a higher power output which is designed to drive headphones.
Other then that they both produce the same signal out.

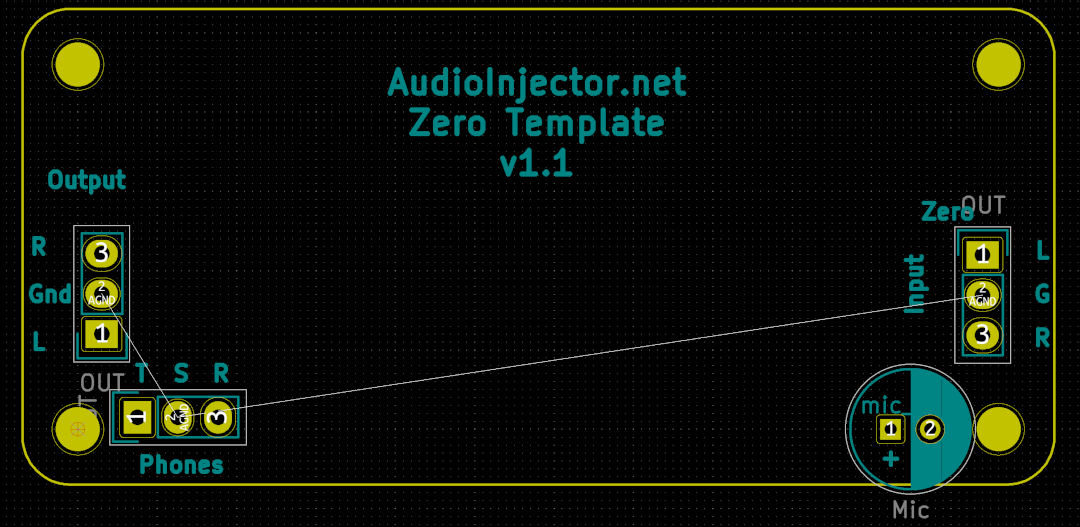

I have updated the repo with more information. See the image attached.
Matt
On 19/8/20 12:51 pm, Ron via People wrote:
>
> Hi Matt,
>

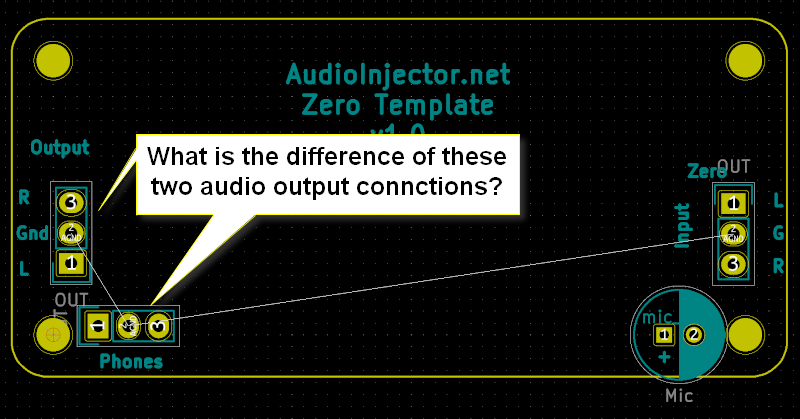

> I'm confused regarding the difference between the two audio outputs
> available on the zero. It appears that "Output" is a LINE output but
> I don't understand what Phones is for and what type of output is
> available from it. Also, how is one output activated and/or
> controlled verses the other. And also, on the phones connection what
> left/right?
>
> --
> 73,
> Ron / W4MMP
>
--
