Another difference is that the ALSA mixer output volume control only affects the phones output, not the line output which is connected directly to the DAC.

Regards
/Rob

From: People <people-bounces at lists.audioinjector.net> On Behalf Of Matt via People
Sent: Wednesday, 19 August 2020 05:11
To: people at lists.audioinjector.net
Subject: Re: [AudioI] zero audio output connections


Hi,

The regular output drives RCAs or another preamplifier. The phones output is a higher power output which is designed to drive headphones. Other then that they both produce the same signal out.

I have updated the repo with more information. See the image attached.

Matt
On 19/8/20 12:51 pm, Ron via People wrote:

Hi Matt,

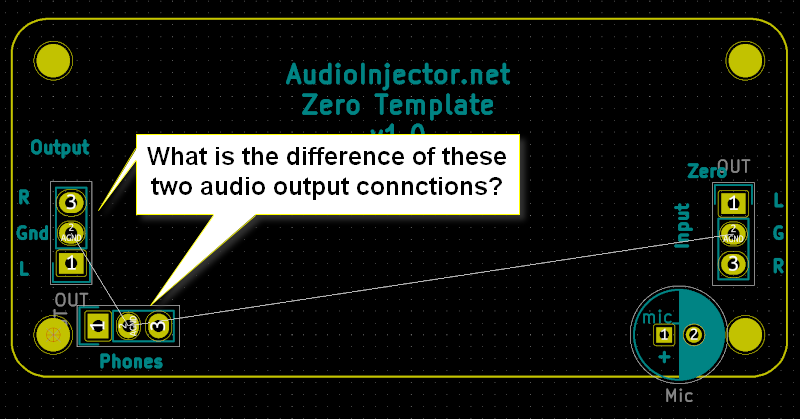

I'm confused regarding the difference between the two audio outputs available on the zero.  It appears that "Output" is a LINE output but I don't understand what Phones is for and what type of output is available from it.  Also, how is one output activated and/or controlled verses the other.  And also, on the phones connection what left/right?

[cid:image001.png at 01D675F7.D197B280]

--

73,

Ron / W4MMP





--
