[AudioI] Part numbers for other options (Zero)
Matt
matt at audioinjector.net
Thu May 21 08:03:45 AEST 2020
Hi David,
For the pots, if you measure their pin pitch, you can probably find may
options on digikey or other website. The pots are a very standard
formfactor, if you do a search for ganged potentiometer and look for
options like the following :
https://res.cloudinary.com/rsc/image/upload/b_rgb:FFFFFF,c_pad,dpr_1.0,f_auto,h_171,q_auto,w_200/c_pad,h_171,w_200/F7293505-01?pgw=1
Go for a 100 kOhm ganged pot, linear or logarithmic - normally
logarithmic but you could try both.

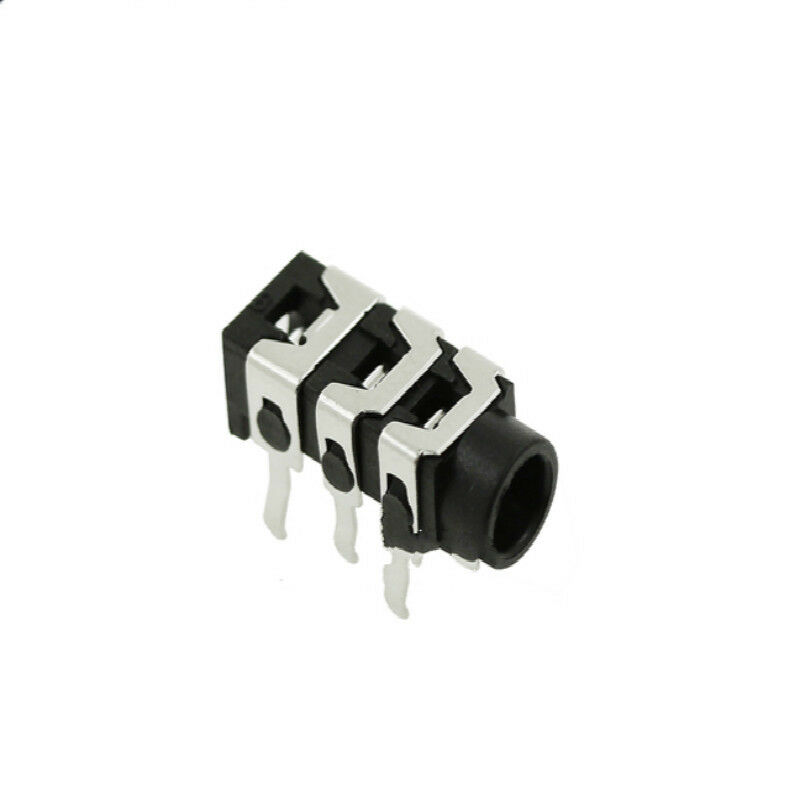

Regarding the 3.5mm stereo jacks, the keyword is "pj 313". It is a 5p (5
pin) audio connector.
Hope that helps !
Matt
On 19/5/20 6:21 pm, David Billsbrough via People wrote:
> Hello,
>
> What are the part numbers for the optional part to the i/o boards for the 'Zero'?
>
> Like the pots and 1/4" phone jack.
>
> regards,
>
> David
>
>
--
Our latest product launching now on Kickstarter :
https://bit.ly/2Qr1557
Checkout the community email list :
https://lists.audioinjector.net/mailman/listinfo/people
-------------- next part --------------
A non-text attachment was scrubbed...
Name: pot.example.jpeg
Type: image/jpeg
Size: 6462 bytes
Desc: not available
URL: <https://lists.audioinjector.net/pipermail/people/attachments/20200521/27563514/attachment-0001.jpeg>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: pj313.jpg
Type: image/jpeg
Size: 23173 bytes
Desc: not available
URL: <https://lists.audioinjector.net/pipermail/people/attachments/20200521/27563514/attachment-0001.jpg>
