[AudioI] Zero soundcard GPIO pins used

[Ron Patton]

Hi,

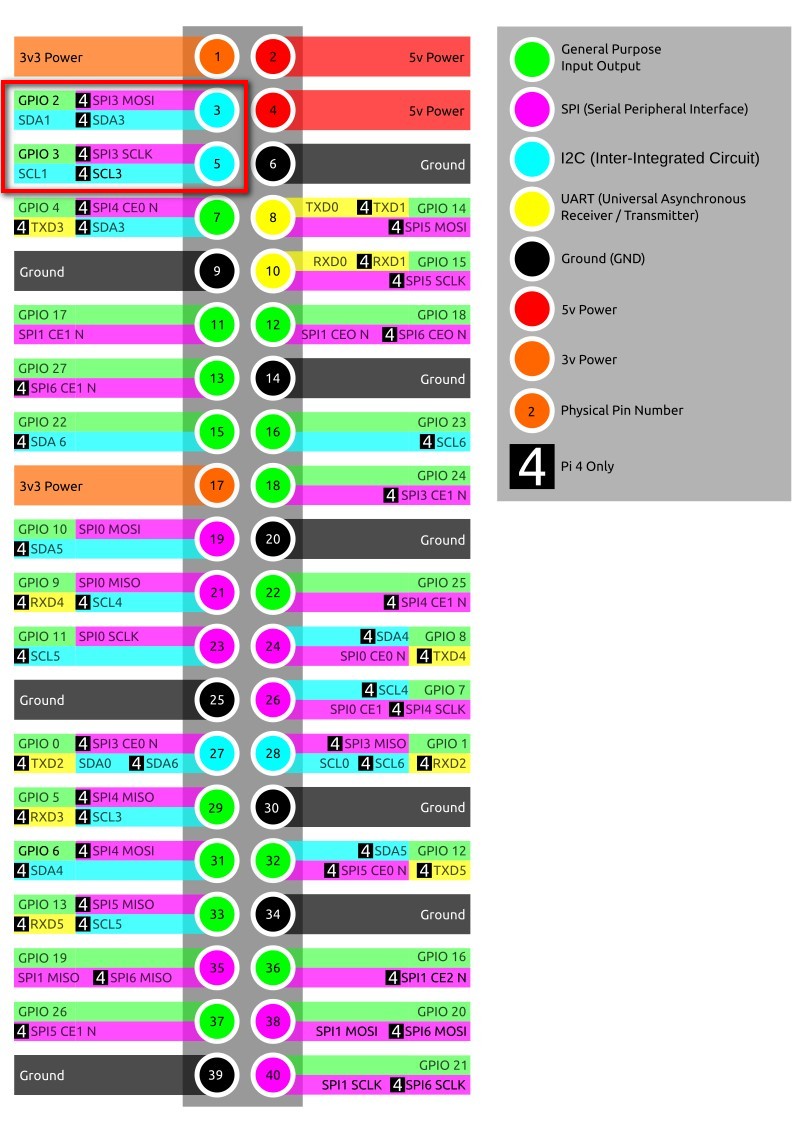

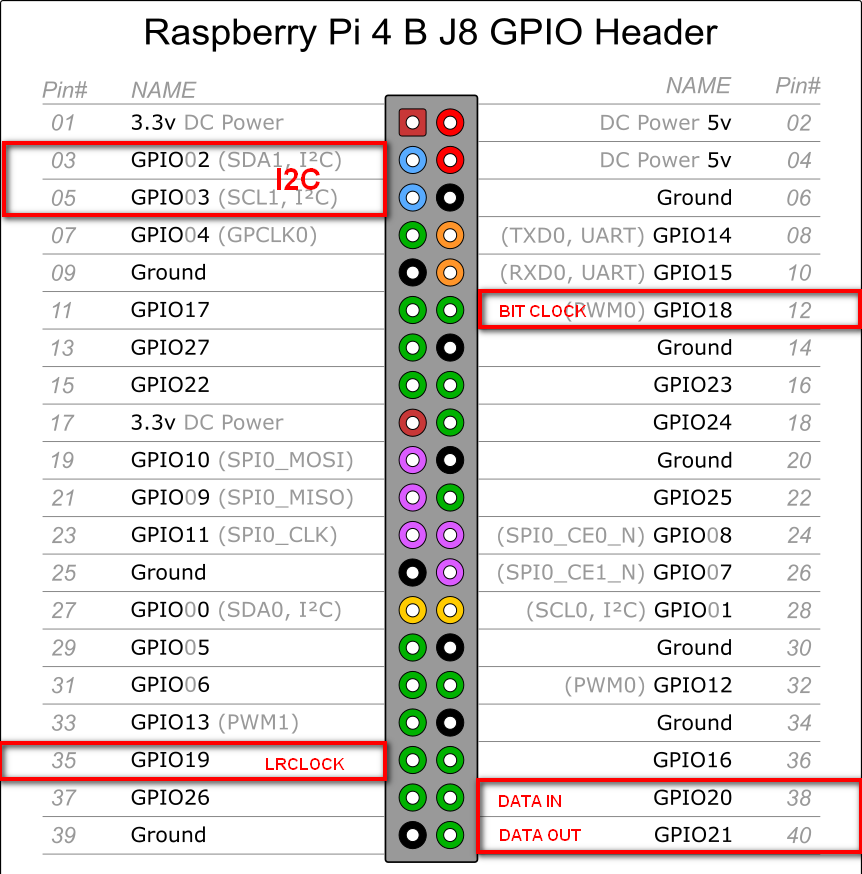

Here is an updated pin out for the stereo and zero cards. The RED boxes are the stereo/zero pins. Below that is a pin out of the RPi 4B 40 pin header. It is quite useful when determining the functions of the various pins. Although the I2C pins may be shared as Matt mentioned, we opted to use an alternate I2C configuration (I2C-6) for our product. Our product makes heavy use the I2C buss and we did not want any conflicts with the audio hat.

73,
Ron / W4MMP

On 2/3/2021 22:39, Matt wrote:

> If you do, please repost it here.
>
> On 4/2/21 2:37 pm, Ron Patton via People wrote:
>
>> Hi Matt,
>>
>> Hum, there is a mistake on the pin diagram. I will need to remove the SPI pins from the diagram.
>>
>> Thanks
>>
>> 73,
>> Ron / W4MMP
>>
>> On 2/3/2021 22:01, Matt via People wrote:
>>
>>> Thanks Ron,
>>>
>>> Thanks for the image, it is very helpful. The SPI pins are still free.
>>>
>>> Just confirming that the used pinouts are the following :
>>>
>>> I2C is shared (03, 05)
>>>
>>> I2S are not shared (12, 35, 38, 40)
>>>
>>> Power pins are shared.
>>>
>>> All the other pins are available.
>>>
>>> This applies to the stereo and the zero soundcards.
>>>
>>> Matt
>>>
>>> On 4/2/21 1:20 pm, Ron Patton via People wrote:
>>>
>>>> Hi Paul (I think),
>>>>
>>>> Here is the Zero pin out (in the RED boxes)
>>>>
>>>> 73,
>>>> Ron / W4MMP
>>>>
>>>> On 2/3/2021 20:56, Paul Vannatto via People wrote:
>>>>
>>>>> What are the GPIO pins used by the Zero soundcard?
>>>
>>> --
>>> Checkout the community email list :
>>> https://lists.audioinjector.net/mailman/listinfo/people
>
> --
> Checkout the community email list :
> https://lists.audioinjector.net/mailman/listinfo/people
