[AudioI] No sound in icecast2 stream
Holguin Daniel
cicloide at yahoo.com
Fri May 26 14:35:16 UTC 2023
Hi Phillip,An older Raspbian from Nov 2019 worked for me. I used the default pi user and the installer script.Have a good one.Dan
El viernes, 26 de mayo de 2023, 06:53:27 a. m. GMT-5, Phillip Fox via People <people at lists.audioinjector.net> escribió:
#yiv7381923022 p.yiv7381923022MsoNormal, #yiv7381923022 p.yiv7381923022MsoNoSpacing{margin:0;}#yiv7381923022 p.yiv7381923022MsoNormal, #yiv7381923022 p.yiv7381923022MsoNoSpacing{margin:0;}I haven't had any luck using my Audio Injector Stereo Hat.
I'm new to using audio in Linux and not 100% certain that I've set the hat up correctly. I'm using it on a Raspberry PI IO Board with a CM4. My goal is to setup an Icecast stream for my local network, I'm using Darkice to convert the audio input into mp3 for the stream.
In order to verify my setup I purchased a USB sound and once I updated my Darkice config to use the new card I could hear audio in my stream right away. So my software setup seems to work.
I've also tried to use arecord using the various AudioInjector devices to record wav files in cd and dat format. The files all start with a click and then silence. My Icecast stream using the AudioInjector devices sounds the same.
I've unmuted or enabled all the options in alsamixer, and upded all the volumes to max and set the manual volumn knob almost to the max.
Is it possible that my card is defective?
Is there anything else I could modify?
Thanks for your help,
Phillip Fox
On Mon, Apr 24, 2023, at 2:30 PM, Phillip Fox via People wrote:
Thank you Derm,
I reviewed several of your blog posts without any luck, then decided to remove my AudioInjector Stereo hat and reinstall it. After booting I was able to hear very quiet audio with some distortion from my stream.
I tried adjusting some of the levels using "alsamixer", but that didn't seem to help. I ran the "asound.state.MIC.thru.test" script and could hear audio from the onboard mic after a reboot. I reran the "asound.state.RCA.thru.test" script and since then I haven't heard any more audio. I've tried connecting to both the RCA and the headphone port. I've messed with so many settings with the "amixer" commands, and have verified that they took affect in "alsamixer".
I'm familiar with linux OSs, but new to audio on linux.
I feel like I'm close but missing something obvious, here are some details from my current config. If anyone can point me in the right direction I'd really appreciate it.
I'm running the light version Raspberry PI OS version of Debian Bullseye, so command line only, on a Compute Module 4 board. Would the full UI provide more options? My compute module board has 2 HDMI ports, so my AudioInjector card's card id is 2.
When I run 'arecord' I get the following output (the output starts at 99% then immediatly drops to 13% and stays there even with no record playing):
~ $ arecord -D 'hw:CARD=audioinjectorpi,DEV=0' -vv -f dat /dev/null
Recording WAVE '/dev/null' : Signed 16 bit Little Endian, Rate 48000 Hz, Stereo
Hardware PCM card 2 'audioinjector-pi-soundcard' device 0 subdevice 0
Its setup is:
stream : CAPTURE
access : RW_INTERLEAVED
format : S16_LE
subformat : STD
channels : 2
rate : 48000
exact rate : 48000 (48000/1)
msbits : 16
buffer_size : 24000
period_size : 6000
period_time : 125000
tstamp_mode : NONE
tstamp_type : MONOTONIC
period_step : 1
avail_min : 6000
period_event : 0
start_threshold : 1
stop_threshold : 24000
silence_threshold: 0
silence_size : 0
boundary : 6755399441055744000
appl_ptr : 0
hw_ptr : 0
#######+ | 13%

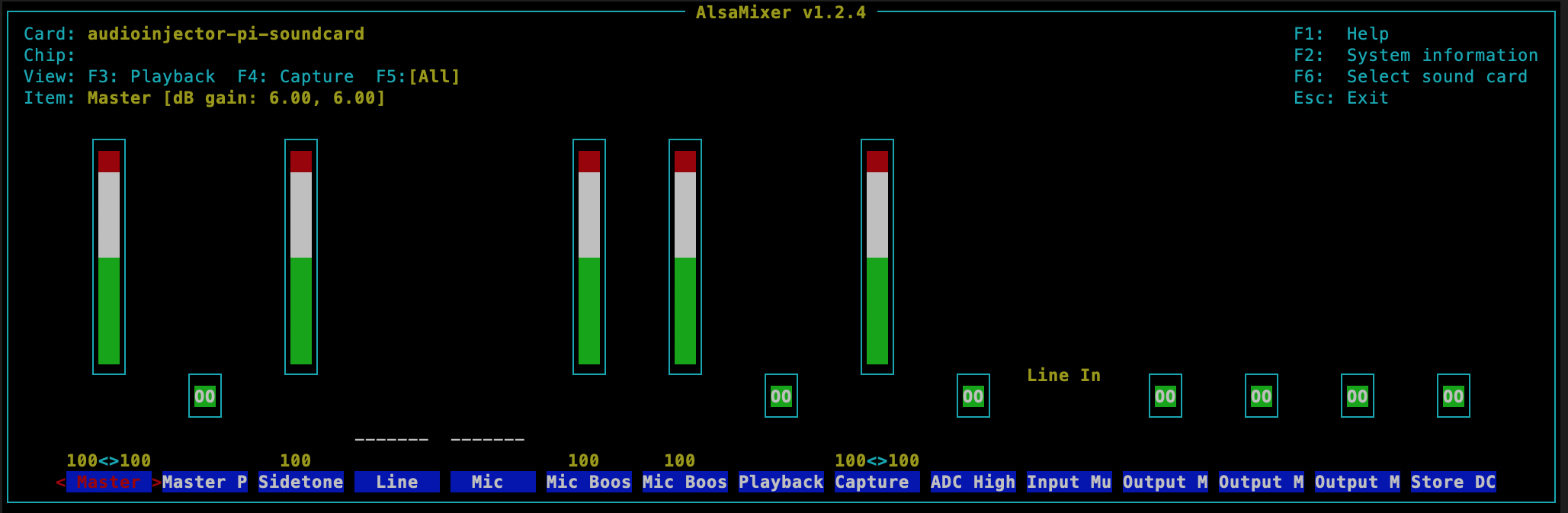

Here is the "AlsaMixer" view:
And the 'amixer' output:
And the "amixer" output:
~ $ amixer -c 2
Simple mixer control 'Master',0
Capabilities: pvolume
Playback channels: Front Left - Front Right
Limits: Playback 0 - 127
Mono:
Front Left: Playback 127 [100%] [6.00dB]
Front Right: Playback 127 [100%] [6.00dB]
Simple mixer control 'Master Playback ZC',0
Capabilities: pswitch
Playback channels: Front Left - Front Right
Mono:
Front Left: Playback [on]
Front Right: Playback [on]
Simple mixer control 'Sidetone',0
Capabilities: pvolume pvolume-joined
Playback channels: Mono
Limits: Playback 0 - 3
Mono: Playback 3 [100%] [-6.00dB]
Simple mixer control 'Line',0
Capabilities: cswitch
Capture channels: Front Left - Front Right
Front Left: Capture [off]
Front Right: Capture [off]
Simple mixer control 'Mic',0
Capabilities: cswitch cswitch-joined
Capture channels: Mono
Mono: Capture [off]
Simple mixer control 'Mic Boost',0
Capabilities: volume volume-joined
Playback channels: Mono
Capture channels: Mono
Limits: 0 - 1
Mono: 1 [100%] [20.00dB]
Simple mixer control 'Playback Deemphasis',0
Capabilities: pswitch pswitch-joined
Playback channels: Mono
Mono: Playback [on]
Simple mixer control 'Capture',0
Capabilities: cvolume
Capture channels: Front Left - Front Right
Limits: Capture 0 - 31
Front Left: Capture 31 [100%] [12.00dB]
Front Right: Capture 31 [100%] [12.00dB]
Simple mixer control 'ADC High Pass Filter',0
Capabilities: pswitch pswitch-joined
Playback channels: Mono
Mono: Playback [on]
Simple mixer control 'Input Mux',0
Capabilities: enum
Items: 'Line In' 'Mic'
Item0: 'Line In'
Simple mixer control 'Output Mixer HiFi',0
Capabilities: pswitch pswitch-joined
Playback channels: Mono
Mono: Playback [on]
Simple mixer control 'Output Mixer Line Bypass',0
Capabilities: pswitch pswitch-joined
Playback channels: Mono
Mono: Playback [on]
Simple mixer control 'Output Mixer Mic Sidetone',0
Capabilities: pswitch pswitch-joined
Playback channels: Mono
Mono: Playback [on]
Simple mixer control 'Store DC Offset',0
Capabilities: pswitch pswitch-joined
Playback channels: Mono
Mono: Playback [on]
Thanks to anyone who can help!
Phill
On Thu, Apr 13, 2023, at 6:57 AM, Diarmuid via People wrote:
You can use arecord as a sound meter to see what sound you are capturing at the mic
|
| Testing a soundcard
rpisounds.wordpress.com
|
|
|
Date: Fri, 07 Apr 2023 20:27:02 -0500
From: "Phillip Fox" <phill at phillfox.net>
Hello all,
I'm trying to setup a local icecast stream using a Raspberry PI CM4 installed on the Compute Module 4 IO Board with the AudioInjector Stero card installed.
I think I've configured the card as outlined in github and I think I have darkice and icecast running properly because they are generating a stream, but there is no sound in the stream.
I think the problem might be with the device I've configured as my source. Running aplay -L I get the following output:
hw:CARD=audioinjectorpi,DEV=0
audioinjector-pi-soundcard, AudioInjector audio wm8731-hifi-0
Direct hardware device without any conversions
plughw:CARD=audioinjectorpi,DEV=0
audioinjector-pi-soundcard, AudioInjector audio wm8731-hifi-0
Hardware device with all software conversions
sysdefault:CARD=audioinjectorpi
audioinjector-pi-soundcard, AudioInjector audio wm8731-hifi-0
Default Audio Device
dmix:CARD=audioinjectorpi,DEV=0
audioinjector-pi-soundcard, AudioInjector audio wm8731-hifi-0
Direct sample mixing device
hw:CARD=vc4hdmi0,DEV=0
vc4-hdmi-0, MAI PCM i2s-hifi-0
Direct hardware device without any conversions
plughw:CARD=vc4hdmi0,DEV=0
vc4-hdmi-0, MAI PCM i2s-hifi-0
Hardware device with all software conversions
sysdefault:CARD=vc4hdmi0
vc4-hdmi-0, MAI PCM i2s-hifi-0
Default Audio Device
hdmi:CARD=vc4hdmi0,DEV=0
vc4-hdmi-0, MAI PCM i2s-hifi-0
HDMI Audio Output
dmix:CARD=vc4hdmi0,DEV=0
vc4-hdmi-0, MAI PCM i2s-hifi-0
Direct sample mixing device
hw:CARD=vc4hdmi1,DEV=0
vc4-hdmi-1, MAI PCM i2s-hifi-0
Direct hardware device without any conversions
plughw:CARD=vc4hdmi1,DEV=0
vc4-hdmi-1, MAI PCM i2s-hifi-0
Hardware device with all software conversions
sysdefault:CARD=vc4hdmi1
vc4-hdmi-1, MAI PCM i2s-hifi-0
Default Audio Device
hdmi:CARD=vc4hdmi1,DEV=0
vc4-hdmi-1, MAI PCM i2s-hifi-0
HDMI Audio Output
dmix:CARD=vc4hdmi1,DEV=0
vc4-hdmi-1, MAI PCM i2s-hifi-0
Direct sample mixing device
I've tried using the following device options in my darkice config with no luck:
hw:CARD=audioinjectorpi,DEV=0
plughw:CARD=audioinjectorpi,DEV=0
sysdefault:CARD=audioinjectorpi
I've used a headphone line out from my phone and from a small amp (which is plugged into a pre-amp) using both the RCA and the headphone line in.
Is one of those listed devices the right option, or is there something else I can do to test the problem?
Thanks for any help!
Phil Fox
