[AudioI] Microphone Input impedance?
Ron
w4mmp at aol.com
Fri May 1 01:19:19 AEST 2020
Hi Matt,
Just a follow up for you and folks reading this thread. After
researching how electret microphone elements work, I found that most
computer type headsets use an electret microphone element. A standard
computer type headset works fine when attached to MIC and PHONES
connections on the zero.
73,
Ron / W4MMP
On 4/22/2020 01:35, Matt via People wrote:
>
> Right, looks good.
>
> For the mic. Ground goes to the terminal with the solid white
> silkscreen paint around it. The Red "Microphone" connection goes to
> the other terminal next to it which has the "+" sign.
>
> On 22/4/20 1:16 am, Ron via People wrote:
>>
>> Hi Matt,
>>

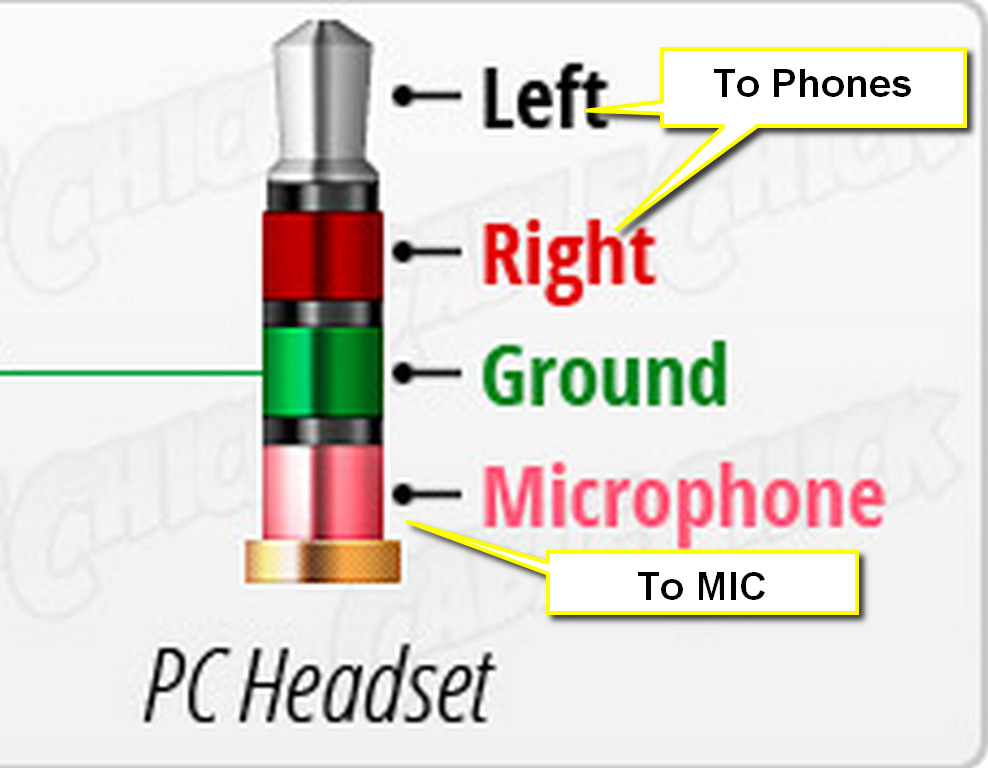

>> We will be wiring the audio hat to a TRRS female connector for the
>> headset to plug into. We will use the MIC holes and the phone holes.
>>
>> On 4/21/2020 06:28, Matt via People wrote:
>>> Ok, I think it is an electret microphone.
>>>
>>> Do you have a connector on the headset ? Do you have a link to an
>>> image ?
>>>
>>> On 18/4/20 1:55 pm, Ron via People wrote:
>>>> Hi Matt,
>>>>
>>>> When I say real microphone, I mean a microphone of the type that
>>>> is used in a headset. Should I use the RCA port or the MIC port?
>>>>
>> --
>> 73,
>> Ron / W4MMP
>>
> --
