[AudioI] Microphone Input impedance?
Matt
matt at audioinjector.net
Fri May 1 09:38:20 AEST 2020
Great to have confirmation. thanks
On 1/5/20 1:19 am, Ron via People wrote:
>
> Hi Matt,
>
> Just a follow up for you and folks reading this thread. After
> researching how electret microphone elements work, I found that most
> computer type headsets use an electret microphone element. A standard
> computer type headset works fine when attached to MIC and PHONES
> connections on the zero.
>
> 73,
> Ron / W4MMP
> On 4/22/2020 01:35, Matt via People wrote:
>>
>> Right, looks good.
>>

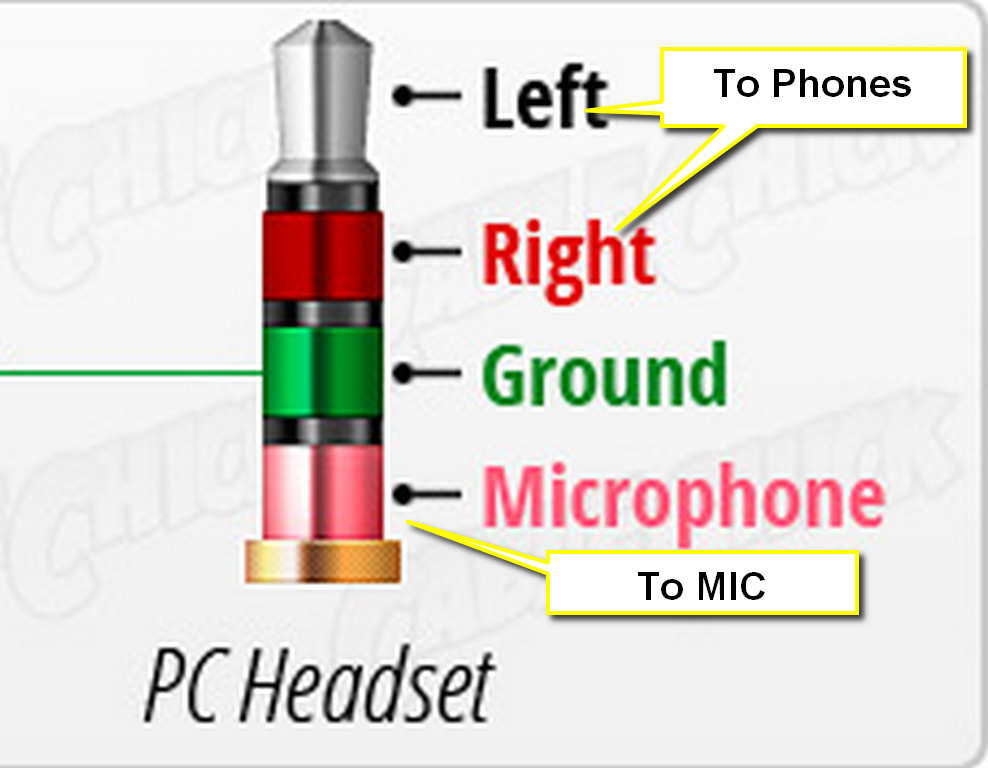

>> For the mic. Ground goes to the terminal with the solid white
>> silkscreen paint around it. The Red "Microphone" connection goes to
>> the other terminal next to it which has the "+" sign.
>>
>> On 22/4/20 1:16 am, Ron via People wrote:
>>>
>>> Hi Matt,
>>>
>>> We will be wiring the audio hat to a TRRS female connector for the
>>> headset to plug into. We will use the MIC holes and the phone holes.
>>>
>>> On 4/21/2020 06:28, Matt via People wrote:
>>>> Ok, I think it is an electret microphone.
>>>>
>>>> Do you have a connector on the headset ? Do you have a link to an
>>>> image ?
>>>>
>>>> On 18/4/20 1:55 pm, Ron via People wrote:
>>>>> Hi Matt,
>>>>>
>>>>> When I say real microphone, I mean a microphone of the type that
>>>>> is used in a headset. Should I use the RCA port or the MIC port?
>>>>>
>>> --
>>> 73,
>>> Ron / W4MMP
>>>
>> --
