[AudioI] stereo microphone using RCA input
Matt Flax
matt at audioinjector.net
Thu Jan 27 05:39:31 UTC 2022
Yes, the card's circuit is very similar to that provided in the wm8731 datasheet. You can use that as a reference.
I've attached the input impedance to the codec.

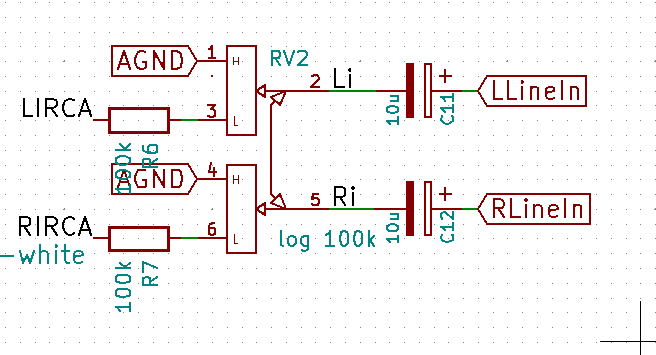

You can most certainly replace the potentiometer, the middle pin is normally the signal pin. In the attachment you'll notice the input resistance in series with the signal - also the AC coupling caps.
Matt
On 27/1/22 16:25, Ryan Cole via People wrote:
Hi,
Is there any way I could get a schematic or specs about the stereo card? It would help me understand what inputs to provide to the line in. The WM8731 spec sheet has some info of recommended circuits to provide to the line in pin. However these don't have the potentiometer. I was thinking about replacing the potentiometer with a resistor since I don't need the variable resistance.
Ryan
On Wed, Jan 26, 2022 at 7:03 PM Matt Flax <matt at audioinjector.net <mailto:matt at audioinjector.net> > wrote:
Hi,
You can with external preamplifiers. The ultra card has two electret
microphone inputs if you would like a different option.
Matt
On 26/1/22 14:54, Ryan Cole via People wrote:
> Hi all,
> I am wondering if I can connect two ECMs to the RCA inputs on the
> audioinjector stereo board. I have been using the onboard microphone,
> but would like to connect two ECMs via the RCA inputs if possible to
> record in stereo. Is this possible?
> Thanks,
> Ryan
>
--
Checkout the community email list :
https://lists.audioinjector.net/mailman/listinfo/people
--
Checkout the community email list :
https://lists.audioinjector.net/mailman/listinfo/people
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <https://lists.audioinjector.net/pipermail/people/attachments/20220127/0ce93235/attachment-0001.htm>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: AI.stereo.input.pot.png
Type: image/png
Size: 7979 bytes
Desc: not available
URL: <https://lists.audioinjector.net/pipermail/people/attachments/20220127/0ce93235/attachment-0001.png>
