[AudioI] People Digest, Vol 37, Issue 2
jr52884
jr52884 at aim.com
Tue May 30 02:12:04 UTC 2023

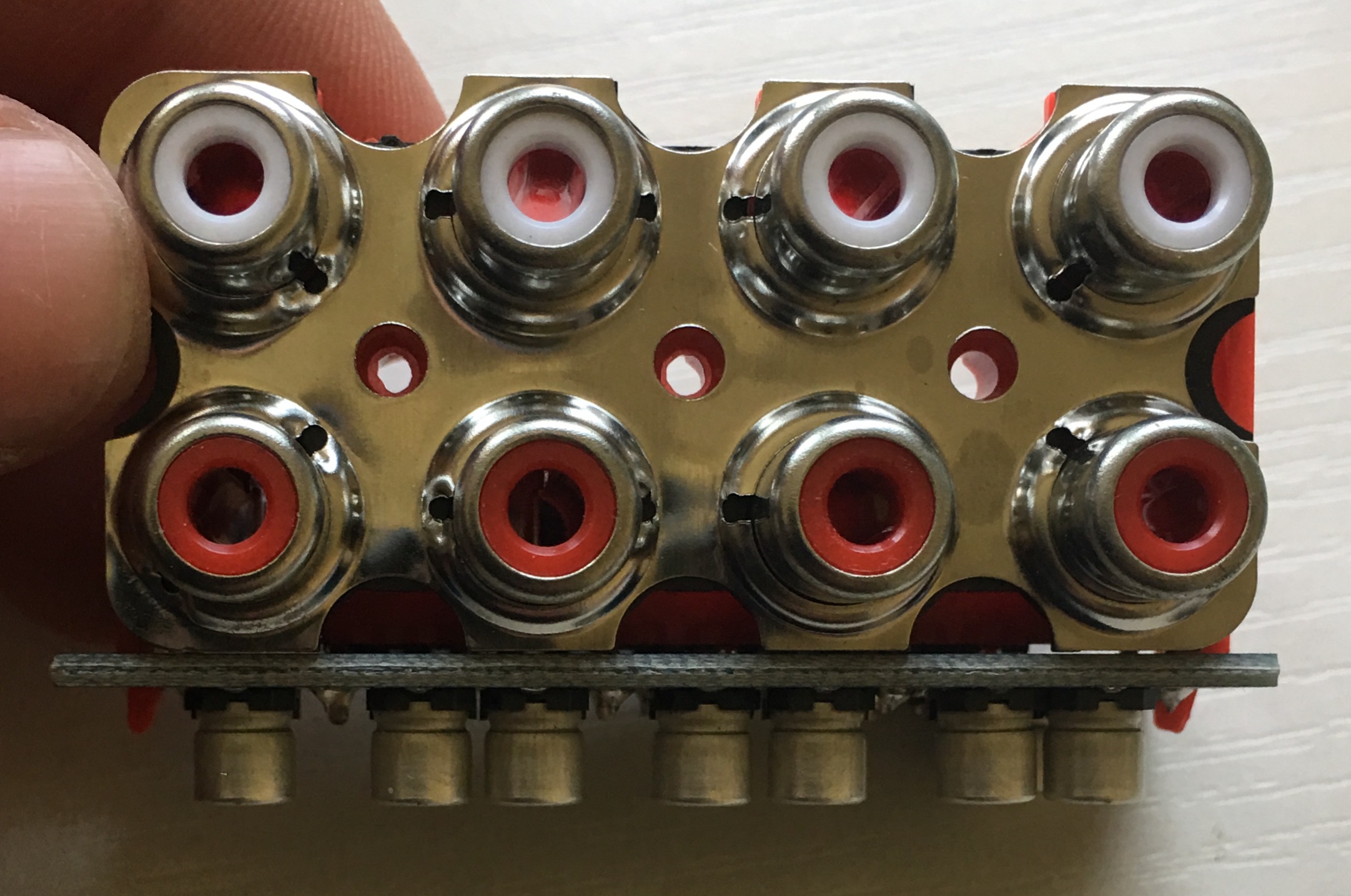

It looks like I might be wrong. Here are pictures of the output board, showing left channels as even numbered:
>From this in relation to the input board, 2, 4, and 6 are left channels and 1, 3, and 5 are right channels. Do I have this right?
Thanks.
Jonathan
Sent from the all new AOL app for iOS
On Friday, April 14, 2023, 8:42 PM, jr52884 via People <people at lists.audioinjector.net> wrote:
Hi David,
I really appreciate this information! From what I gather, is this correct? I don’t have the RCA connectors anymore.
Thanks!
Jonathan
Sent from the all new AOL app for iOS
On Friday, April 14, 2023, 2:08 AM, David Vanmanshoven via People <people at lists.audioinjector.net> wrote:
Hi,
I believe this is what you are looking for:
Channel number Channel name Pin
0 ADC1 Left ADC_fb1- ADC_fb1+
1 ADC1 Right ADC_fb2- ADC_fb2+
2 ADC2 Left ADC_fb3- ADC_fb3+
3 ADC2 Right ADC_fb4- ADC_fb4+
4 ADC3 Left ADC_fb5- ADC_fb5+
5 ADC3 Right ADC_fb6- ADC_fb6+
When you hold this input print in front of you with the cinch connector facing you and the PCB on the bottom, then:
0 bottom left
1 top left
2 bottom middle
3 top middle
4 bottom right
5 top right
Kind regards,
David
-----Original Message-----
From: People <people-bounces at lists.audioinjector.net> On Behalf Of people-request at lists.audioinjector.net
Sent: donderdag 13 april 2023 11:36
To: people at lists.audioinjector.net
Subject: People Digest, Vol 37, Issue 2
Send People mailing list submissions to
people at lists.audioinjector.net
To subscribe or unsubscribe via the World Wide Web, visit
https://lists.audioinjector.net/mailman/listinfo/people
or, via email, send a message with subject or body 'help' to
people-request at lists.audioinjector.net
You can reach the person managing the list at
people-owner at lists.audioinjector.net
When replying, please edit your Subject line so it is more specific than "Re: Contents of People digest..."
Today's Topics:
1. Octo Input Numbering (jr52884)
----------------------------------------------------------------------
Message: 1
Date: Thu, 13 Apr 2023 09:35:50 +0000 (UTC)
From: jr52884 <jr52884 at aim.com>
To: <people at lists.audioinjector.net>
Subject: [AudioI] Octo Input Numbering
Message-ID: <174651869.1512330.1681378550276 at mail.yahoo.com>
Content-Type: text/plain; charset="utf-8"
Matt,
Can you post the numbering of the channel inputs on the Octo? This would be channel 1-6 for how it?s reported in ALSA. Attached is a picture of the input board which I removed the RCA jacks. Which input is channel 1?
Thanks.
Jonathan
Sent from the all new AOL app for iOS
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <https://lists.audioinjector.net/pipermail/people/attachments/20230413/49a9cb56/attachment.htm>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: FullSizeRender.jpg
Type: image/jpeg
Size: 449742 bytes
Desc: not available
URL: <https://lists.audioinjector.net/pipermail/people/attachments/20230413/49a9cb56/attachment.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: FullSizeRender.jpg
Type: image/jpeg
Size: 449742 bytes
Desc: not available
URL: <https://lists.audioinjector.net/pipermail/people/attachments/20230413/49a9cb56/attachment-0001.jpg>
------------------------------
Subject: Digest Footer
--
People mailing list
People at lists.audioinjector.net
https://lists.audioinjector.net/mailman/listinfo/people
------------------------------
End of People Digest, Vol 37, Issue 2
*************************************
--
People mailing list
People at lists.audioinjector.net
https://lists.audioinjector.net/mailman/listinfo/people
--
People mailing list
People at lists.audioinjector.net
https://lists.audioinjector.net/mailman/listinfo/people
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <https://lists.audioinjector.net/pipermail/people/attachments/20230530/db194ee7/attachment-0001.htm>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: FullSizeRender.jpg
Type: image/jpeg
Size: 696026 bytes
Desc: not available
URL: <https://lists.audioinjector.net/pipermail/people/attachments/20230530/db194ee7/attachment-0003.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: FullSizeRender.jpg
Type: image/jpeg
Size: 947802 bytes
Desc: not available
URL: <https://lists.audioinjector.net/pipermail/people/attachments/20230530/db194ee7/attachment-0004.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: FullSizeRender.jpg
Type: image/jpeg
Size: 462101 bytes
Desc: not available
URL: <https://lists.audioinjector.net/pipermail/people/attachments/20230530/db194ee7/attachment-0005.jpg>
