[Holguin Daniel]

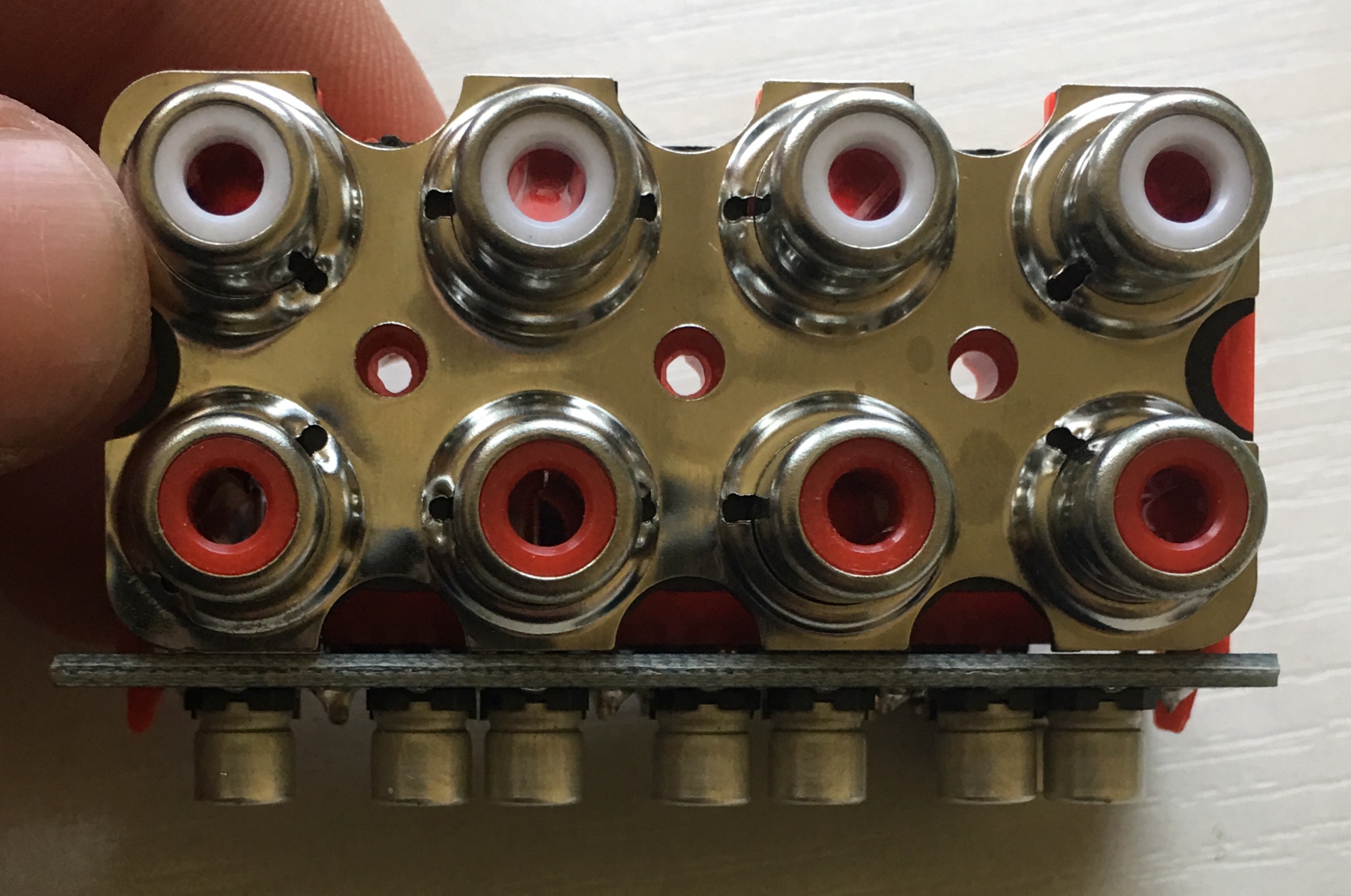

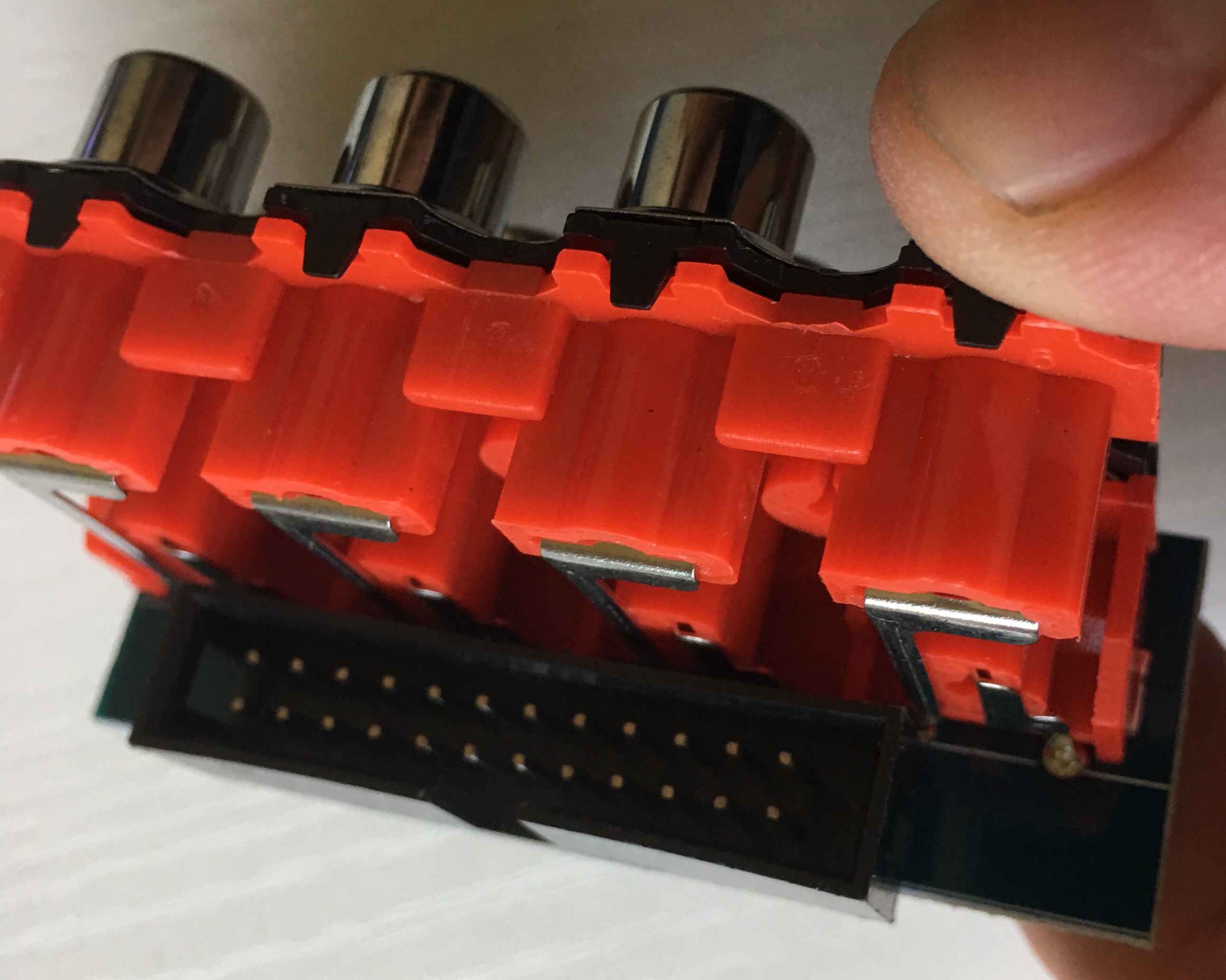

 Yes. It's unlike the usual, the opposite.Bottom red connectors are 1, 3, 5, 7 and top white connectors are 2, 4, 6, 8.I went through the same realization.
    El lunes, 29 de mayo de 2023, 09:12:31 p. m. GMT-5, jr52884 via People <people at lists.audioinjector.net> escribió:

 It looks like I might be wrong. Here are pictures of the output board, showing left channels as even numbered:

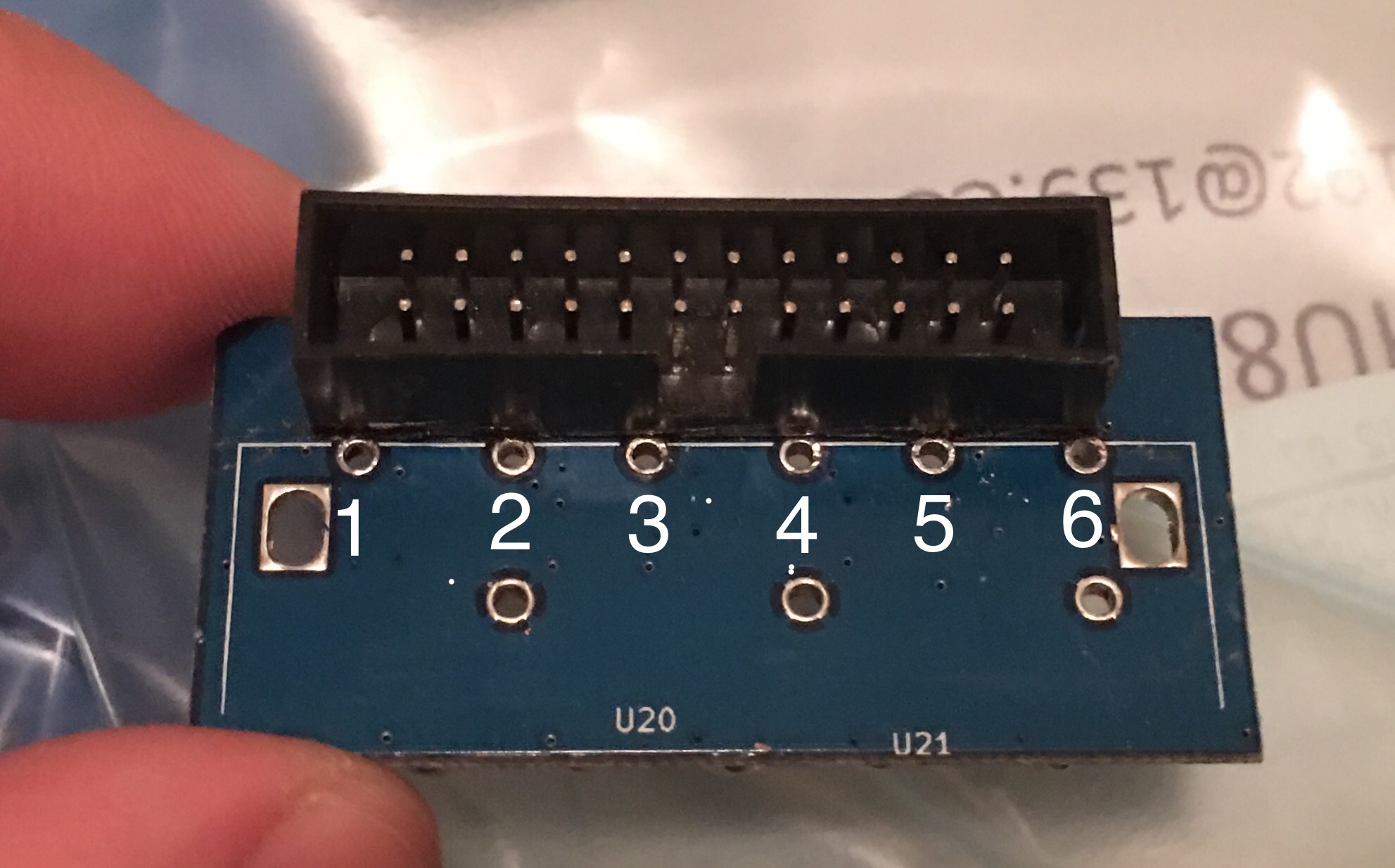

>From this in relation to the input board, 2, 4, and 6 are left channels and 1, 3, and 5 are right channels. Do I have this right?
Thanks.
Jonathan


Sent from the all new AOL app for iOS


On Friday, April 14, 2023, 8:42 PM, jr52884 via People <people at lists.audioinjector.net> wrote:

Hi David,
I really appreciate this information! From what I gather, is this correct? I don’t have the RCA connectors anymore.


Thanks!
Jonathan


Sent from the all new AOL app for iOS


On Friday, April 14, 2023, 2:08 AM, David Vanmanshoven via People <people at lists.audioinjector.net> wrote:

Hi,

I believe this is what you are looking for:

Channel number    Channel name    Pin
0            ADC1 Left    ADC_fb1- ADC_fb1+
1            ADC1 Right    ADC_fb2- ADC_fb2+
2            ADC2 Left    ADC_fb3- ADC_fb3+
3            ADC2 Right    ADC_fb4- ADC_fb4+
4            ADC3 Left    ADC_fb5- ADC_fb5+
5            ADC3 Right    ADC_fb6- ADC_fb6+

When you hold this input print in front of you with the cinch connector facing you and the PCB on the bottom, then:
0    bottom left
1    top left
2    bottom middle
3    top middle
4    bottom right
5    top right

Kind regards,

David
