[AudioI] Audio Pro Soundcard for Tidal streaming

[mott]

Actually, what I wrote is probably wrong, at least, if the diagram really does apply to the Pro.Output 4 is Left out +ve and Output 3 is Right +ve, for balanced, I assume.Enviado do meu Galaxy
-------- Mensagem original --------De : Iain Mott via People <people at lists.audioinjector.net> Data: 13/01/2024  11:38  (GMT-03:00) Para: Holguin Daniel <cicloide at yahoo.com>, people at lists.audioinjector.net Assunto: Re: [AudioI] Audio Pro Soundcard for Tidal streaming
    Thanks Fausto!

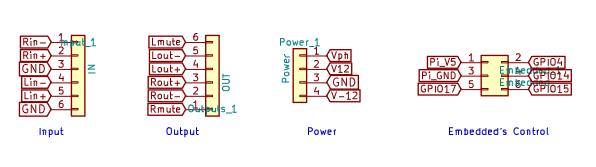

    I saw this diagram on github:

    So I'd wire the left channel RCA "tip" to Output 1 and the right
      channel tip to Output 2. Correct? Do the Output pins have a ground
      or should I wire the RCA sleeves to the GND on the Power pins?
    Iain




    Em 13/01/2024 09:21, Holguin Daniel
      escreveu:



      Hi Iain.


      Yes. The first two channels are at the left. The left channel
        on top. Usually.


      The card can output stereo.


      Fausto

        sent from a📱



            On Sat, Jan 13, 2024 at 5:01, Iain Mott via People
            <people at lists.audioinjector.net> wrote:


            Hi,



            I'm interested in using the new Audio Pro
              Soundcard for streaming Tidal

            with a high resolution account (audio of up
              to 192kHz, 24bit). For this

            I'll be needing only unbalanced audio output
              from the card to connect to

            a stereo pre-amp and power amp.



            How should I go about making the audio
              connections for this, please? Is

            it just a matter of connecting a pair of RCA
              sockets to certain pins on

            the "OUT" section of the board?



            For my system, the Raspberry with the Pro
              Soundcard will be running a

            Logitech Media Server with a Squeezelite
              audio player.



            Thanks a lot,



            Iain





            --

            People mailing list

            People at lists.audioinjector.net

            https://lists.audioinjector.net/mailman/listinfo/people





    --
_______
Iain Mott
https://escuta.org
