[AudioI] Audio Pro Soundcard for Tidal streaming

[Iain Mott]

Thanks Fausto!

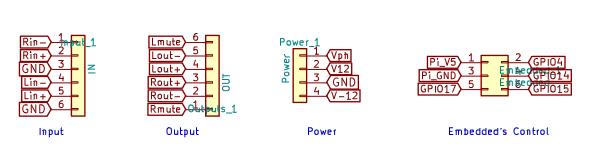

I saw this diagram on github:

So I'd wire the left channel RCA "tip" to Output 1 and the right channel
tip to Output 2. Correct? Do the Output pins have a ground or should I
wire the RCA sleeves to the GND on the Power pins?

Iain


Em 13/01/2024 09:21, Holguin Daniel escreveu:
> Hi Iain.
>
> Yes. The first two channels are at the left. The left channel on top.
> Usually.
>
> The card can output stereo.
>
> Fausto
>
> sent from a📱
>
>     On Sat, Jan 13, 2024 at 5:01, Iain Mott via People
>     <people at lists.audioinjector.net> wrote:
>     Hi,
>
>     I'm interested in using the new Audio Pro Soundcard for streaming
>     Tidal
>     with a high resolution account (audio of up to 192kHz, 24bit). For
>     this
>     I'll be needing only unbalanced audio output from the card to
>     connect to
>     a stereo pre-amp and power amp.
>
>     How should I go about making the audio connections for this,
>     please? Is
>     it just a matter of connecting a pair of RCA sockets to certain
>     pins on
>     the "OUT" section of the board?
>
>     For my system, the Raspberry with the Pro Soundcard will be running a
>     Logitech Media Server with a Squeezelite audio player.
>
>     Thanks a lot,
>
>     Iain
>
>
>     --
>     People mailing list
>     People at lists.audioinjector.net
>     https://lists.audioinjector.net/mailman/listinfo/people
>
--
_______
Iain Mott
https://escuta.org
