[AudioI] FW: Re: Audio Pro Soundcard for Tidal streaming

[mott]

Enviado do meu Galaxy
-------- Mensagem original --------De : mott <mott at escuta.org> Data: 15/01/2024  12:25  (GMT-03:00) Para: jr52884 <jr52884 at aim.com> Assunto: Re: [AudioI] Audio Pro Soundcard for Tidal streaming Hi Jonathan,So the XLR preamp acts as a complete stereo interface, with stereo output independent of any input? IainEnviado do meu Galaxy-------- Mensagem original --------De : jr52884 <jr52884 at aim.com> Data: 15/01/2024  11:47  (GMT-03:00) Para: mott <mott at escuta.org>, people at lists.audioinjector.net Assunto: Re: [AudioI] Audio Pro Soundcard for Tidal streaming
Hi Iain,You simply buy the Audio Injector Pro and the XLR preamp board and use XLR to connect unbalanced audio to your preamp like you would anything else. The preamp board is needed unless you want to roll your own high quality op amp line drivers. The CODEC requires them. JonathanSent from the all new AOL app for iOSOn Sunday, January 14, 2024, 12:20 PM, mott via People <people at lists.audioinjector.net> wrote:Thanks Jonathan. No, sorry, I should have explained better. I currently have a raspberry pi with a stereo audio injector card. It's connected to a Quad 43 preamplifier and I use it for streaming Tidal. My turntable is also connected to the Quad and I want keep using the preamp. I'm interested in using the Pro audioinjector to make use of its processing of higher sampling rates, specifically, for Tidal's high resolution content, some of which streams at 192kHz. So I need to know how to wire its output to connect with the unbalanced inputs of the Quad 43.IainEnviado do meu Galaxy-------- Mensagem original --------De : jr52884 at aim.com Data: 14/01/2024  13:27  (GMT-03:00) Para: mott <mott at escuta.org> Assunto: Re: [AudioI] Audio Pro Soundcard for Tidal streaming
        Ian,There are output boards available, both single-ended (rca preamp) and differential (XLR preamp) boards. It sounds like you have the RCA preamp board. You would simply buy the differential preamp board. Here is the product page and it looks like you can purchase it here. Jonathan





                    On Saturday, January 13, 2024, 11:24:28 AM EST, mott via People <people at lists.audioinjector.net> wrote:



                Actually, what I wrote is probably wrong, at least, if the diagram really does apply to the Pro.Output 4 is Left out +ve and Output 3 is Right +ve, for balanced, I assume.Enviado do meu Galaxy-------- Mensagem original --------De : Iain Mott via People <people at lists.audioinjector.net> Data: 13/01/2024  11:38  (GMT-03:00) Para: Holguin Daniel <cicloide at yahoo.com>, people at lists.audioinjector.net Assunto: Re: [AudioI] Audio Pro Soundcard for Tidal streaming
    Thanks Fausto!

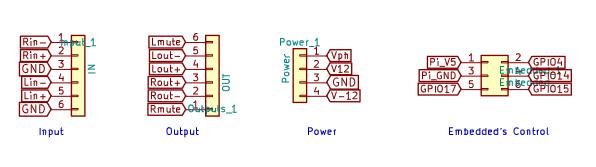

    I saw this diagram on github:

    So I'd wire the left channel RCA "tip" to Output 1 and the right
      channel tip to Output 2. Correct? Do the Output pins have a ground
      or should I wire the RCA sleeves to the GND on the Power pins?
    Iain




    Em 13/01/2024 09:21, Holguin Daniel
      escreveu:



      Hi Iain.


      Yes. The first two channels are at the left. The left channel
        on top. Usually.


      The card can output stereo.


      Fausto

        sent from a📱



            On Sat, Jan 13, 2024 at 5:01, Iain Mott via People
            <people at lists.audioinjector.net> wrote:


            Hi,



            I'm interested in using the new Audio Pro
              Soundcard for streaming Tidal

            with a high resolution account (audio of up
              to 192kHz, 24bit). For this

            I'll be needing only unbalanced audio output
              from the card to connect to

            a stereo pre-amp and power amp.



            How should I go about making the audio
              connections for this, please? Is

            it just a matter of connecting a pair of RCA
              sockets to certain pins on

            the "OUT" section of the board?



            For my system, the Raspberry with the Pro
              Soundcard will be running a

            Logitech Media Server with a Squeezelite
              audio player.



            Thanks a lot,



            Iain





            --

            People mailing list

            People at lists.audioinjector.net

            https://lists.audioinjector.net/mailman/listinfo/people





    --
_______
Iain Mott
https://escuta.org

-- People mailing listPeople at lists.audioinjector.nethttps://lists.audioinjector.net/mailman/listinfo/people

        -- People mailing listPeople at lists.audioinjector.nethttps://lists.audioinjector.net/mailman/listinfo/people
