[AudioI] Isolated Audioinjector Question

[Matt]

Hi,

Great to hear that it sounds good.

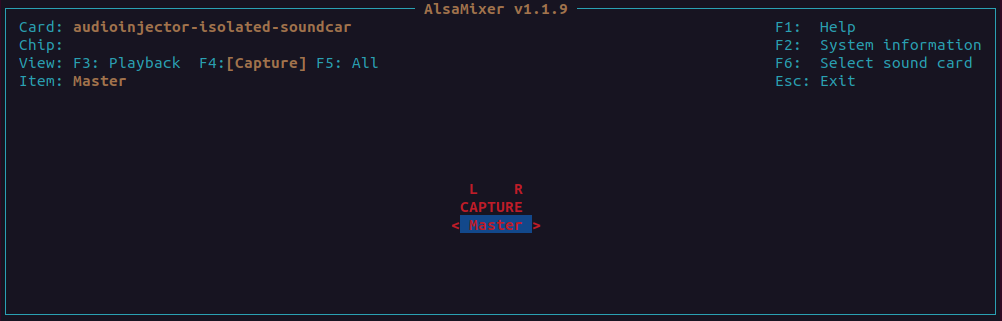

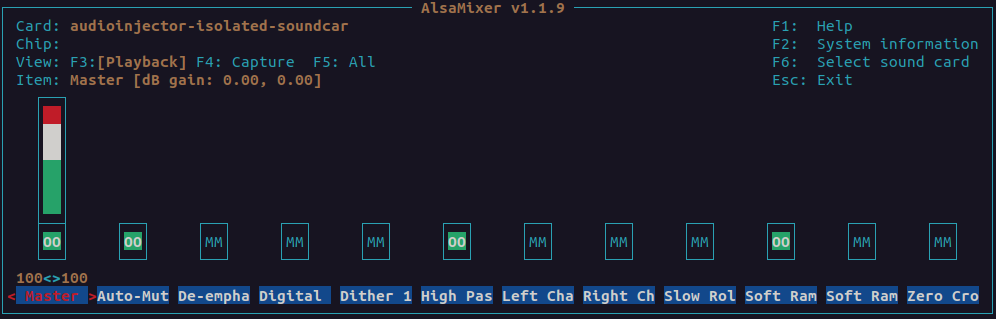

Below are my output and input alsamixer screendshots for the Isolated
and Pro. soundcards. The Master output gain controls the level on the
output. The input has no gain in the audio codec.

The XLR preamplifier has 13 dB gain on the output (boosting the full
scale level to around +-10V). The input gain is -12.8 dB which takes a
high voltage XLR level and drops it around 4.4 times.

Is it possible that the signal being sent to the sound card is not loud
enough, so that when the XLR preamplifier drops the level, it reduces it
too much ?

I'm not familiar with the Arrakis ARC-8 radio mixing console. Can you
please explain a little about its output connections and signal levels ?


On 31/12/20 10:24 am, David Klann via People wrote:
> I recently bought an Isolated Soundcard with the XLR Preamplifier. It's
> working great (worked fine right out of the box), and it sounds great!
>
> Using alsamixer(1), I see a gain control for the inputs, but not for the
> Capture port(s). Is there an on-board way to control the output gain?
>
> My current audio source is the Program output on an Arrakis ARC-8 radio
> mixing console. I'm using the Audioinjector to receive the analog audio
> and Liquidsoap on the Pi to encode the audio and send it to a stream
> server. Listening to the stream, the levels seem kind of low to me.
>
> Thanks for your thoughts.
>
>     ~David Klann
>
--
Checkout the community email list :
https://lists.audioinjector.net/mailman/listinfo/people
